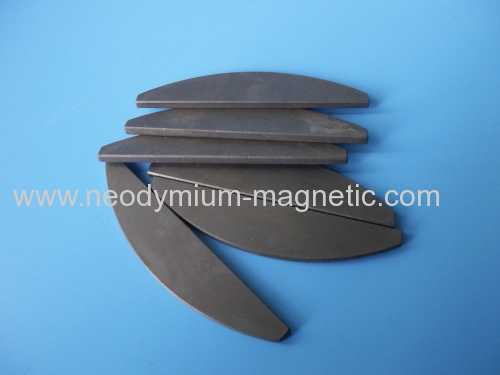

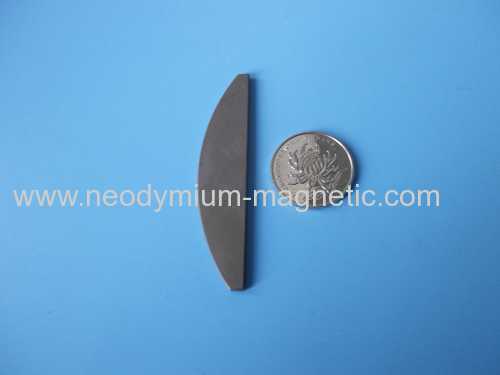

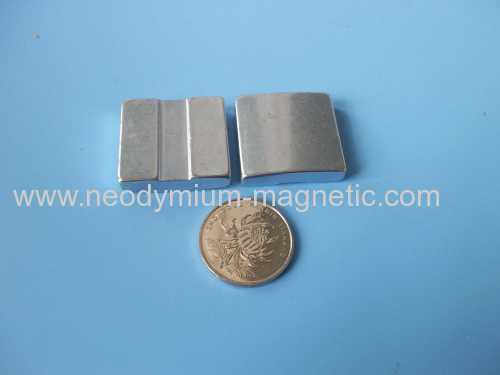

Permanent neodymium mgnet irregular magnet Admin Edit

Quality Motor magnet Quality Certificate: SO9001 ,ISO/TS16949,ISO14001,GS/T28001

  • Min. Order: 1000 Piece/Pieces
  • Trade Term: FOB,CFR,CIF,EXW
  • Payment Terms: L/C, T/T, WU
  • Place of Origin: Zhejiang, China (Mainland)
  • Means of Transport: Ocean, Air, Land
  • Production Capacity: 10000000 PCS/M
  • Packing: Standard export carton

  • Product Description

    Product Attribute

    1,Why Choose US:

    Quality Assurance :

    -The Company achieved certificate of ISO9001 in 2005 and certificate of ISO/TS16949,ISO14001,GS/T28001 in 2014.

    Patent & Licence

    -We Could supply  Patent & Licence Magnet to the end users.

    Soon Feedback

    -We will reply you all the questions within 24 hours.

    Payment terms:

    We Could Accept monthly payment.

    Soonest delivery

    Lead time: ABout 7-20 days

    Favourable  price

    Try our best to save your Money.


    2.Magnet Shape:

    Disc, Block, Ring, Countersunk, Segment ,segment, trapezoid, irregular shape,Special shaped magnet

    a, Disc magnet -Application:Motors ,sensors,Microphones,Switchboard.

    b, Block magnet -Application:VCM,printer,Magnetic Chuck,Switchboard

    c, Ring magnet -Application:Horn,Trumpet,Magnetic Separation,Loudspeakers

    d, Arc magnet -Application:Motor ,Wind turbines ,Wind Generators ,Swichboard

    e, Disc/Ring magnet -Application:Motors ,Permanent machine,Magnetic Device,Magnetic Therapy


    3.Magnet Coating:

    Ndfeb magnets plating include: nickel, copper, chromium, gold, black zinc, epoxy resin.different coating has different colours,also the hold time is different also. each has their advantages and disadvantages.

    1) zinc: the surface looks is silvery white, can do 12-48 hours salt fog, can be used in some glue adhesive, such as AB glue.If electroplating good can be stored for 2-5 years, its advantage is low price.

    2) nickel: looks like stainless steel color, if stay in the air, surface are difficult to oxidation, and good-looking appearance, good gloss, electroplating could pass 12-72 hours salt spray test.Its disadvantage : cannot be used with glue adhesive,it will make the coating fall off,Accelerate the oxidation.now in the market , NiCuNi coating  could be electroplating for 120-200 hours salt spray, but the plating cost is relatively higher.

    3) copper: in hardware industry, ndfeb industry rarely used, its appearance is yellow.

    4) Cr: chromium electroplating industry is rare, cost is very high, generally could not accepted by the company.but it is very difficult to react with other substances.Mainly use where the PH is stronger, the domestic product prices are low, so people rarely use.

    5) Gold: now the industry is very popular, we saw some stalls gold-plated bracelet mostly yellow gold or copper.Gold-plated products appearance looks just like gold is very beautiful, more commonly used in hand act the role of industry, our products can be gold-plated, used for magnetic bracelet.

    6) epoxy resin: the product is  nickel plating+ a layer of resin paint,  its development is very fast these years, a lot of people are now used in all kinds of plating products, its biggest advantage is that can do the color you want.


    4.Testing equipment:

    • laser particle analyzer

    •  Magneic tester

    • Scanning electron microscope

    • magnetic moment,magnetic declination tester

    • oxygen analyzer

    • hast tester

    • caoting thickness gauge

    • inductivelly coupled plasms

    • Electronic fluxmeter

    • salt spray test box

    • fluxmeter

    • image measuring instrument

    • electric heating thermostat




      Sintered Neodymium Magnet grade:



      N30-N52, 33M-50M, 30H-50H, 30SH(T)-45SH(T), 30UH-44UH and 30EH-40EH



      Item

      Grade

      Residual Induction

      Coercive Force

      Intrinsic Coercive Force

      Max. Energy Product

      Tw



      Br


      Hcb


      Hcj


      (BH)Max


      L/D=0.7



      T

      kGS

      kA/m

      kOe

      kA/m

      kOe

      kJ/m³

      MGOe

      °C

      N

      N35

      1.17-1.24

      11.7-12.4

      ≥860

      ≥10.8

      ≥955

      ≥12

      263-295

      33-37

      ≤80


      N38

      1.22-1.30

      12.2-13.0

      ≥860

      ≥10.8

      ≥955

      ≥12

      287-318

      36-40

      ≤80


      N40

      1.26-1.32

      12.6-13.5

      ≥860

      ≥10.8

      ≥955

      ≥12

      302-334

      38-42

      ≤80


      N42

      1.29-1.35

      12.9-13.5

      ≥860

      ≥10.8

      ≥955

      ≥12

      318-350

      40-44

      ≤80


      N45

      1.32-1.38

      13.2-13.8

      ≥860

      ≥10.5

      ≥955

      ≥12

      334-366

      42-46

      ≤80


      N48

      1.37-1.43

      13.7-14.3

      ≥836

      ≥10.8

      ≥876

      ≥11

      358-390

      45-49

      ≤80


      N50

      1.40-1.45

      14.0-14.5

      ≥836

      ≥10.5

      ≥876

      ≥11

      374-406

      47-51

      ≤80


      N52

      1.42-1.48

      14.2-14.8

      ≥836

      ≥10.5

      ≥876

      ≥11

      390-422

      49-53

      ≤80


      N54

      1.45-1.51

      14.5-15.1

      ≥836

      ≥10.5

      ≥876

      ≥11

      398-438

      50-55

      ≤80

      M

      N35M

      1.17-1.25

      11.7-12.4

      ≥860

      ≥10.8

      ≥1114

      ≥14

      263-295

      33-37

      ≤100


      N38M

      1.22-1.30

      12.2-13.0

      ≥915

      ≥11.5

      ≥1114

      ≥14

      287-318

      36-40

      ≤100


      N40M

      1.26-1.32

      12.6-13.5

      ≥939

      ≥11.8

      ≥1114

      ≥14

      302-334

      38-42

      ≤100


      N42M

      1.29-1.35

      12.9-13.5

      ≥955

      ≥12.0

      ≥1114

      ≥14

      318-350

      40-44

      ≤100


      N45M

      1.32-1.38

      13.2-13.8

      ≥987

      ≥12.4

      ≥1114

      ≥14

      334-366

      42-46

      ≤100


      N48M

      1.37-1.43

      13.7-14.3

      ≥1019

      ≥12.8

      ≥1114

      ≥14

      358-390

      45-49

      ≤100

      Item

      Grade

      Residual Induction

      Coercive Force

      Intrinsic Coercive Force

      Max.Energy Product

      Tw



      Br


      Hcb


      Hcj


      (BH)Max


      L/D=0.7



      T

      kGS

      kA/m

      kOe

      kA/m

      kOe

      kJ/m³

      MGOe

      °C

      SH

      N33SH

      1.14-1.21

      11.4-12.1

      ≥852

      ≥10.7

      ≥1592

      ≥20

      247-279

      31-35

      ≤150


      N35SH

      1.17-1.24

      11.7-12.4

      ≥876

      ≥11

      ≥1592

      ≥20

      263-295

      33-37

      ≤150


      N38SH

      1.22-1.30

      12.2-13.0

      ≥915

      ≥11.5

      ≥1592

      ≥20

      287-318

      36-40

      ≤150


      N40SH

      1.26-1.32

      12.6-13.5

      ≥939

      ≥11.8

      ≥1592

      ≥20

      302-334

      38-42

      ≤150


      N42SH

      1.29-1.35

      12.9-13.5

      ≥963

      ≥12.1

      ≥1592

      ≥20

      318-350

      40-44

      ≤150


      N45SH

      1.32-1.38

      13.2-13.8

      ≥994

      ≥12.5

      ≥1592

      ≥20

      335-366

      42-46

      ≤150

      UH

      N30UH

      1.08-1.16

      10.8-11.6

      ≥812

      ≥10.2

      ≥1990

      ≥25

      223-255

      28-32

      ≤180


      N33UH

      1.14-1.21

      11.4-12.1

      ≥852

      ≥10.7

      ≥1990

      ≥25

      247-279

      31-35

      ≤180


      N35UH

      1.17-1.24

      11.7-12.4

      ≥876

      ≥11

      ≥1990

      ≥25

      263-295

      33-37

      ≤180


      N38UH

      1.22-1.30

      12.2-13.0

      ≥915

      ≥11.5

      ≥1990

      ≥25

      287-318

      36-40

      ≤180


      N40UH

      1.26-1.32

      12.6-13.5

      ≥939

      ≥11.8

      ≥1990

      ≥25

      321-334

      38-42

      ≤180


      N42UH

      1.29-1.35

      12.9-13.5

      ≥963

      ≥12.1

      ≥1990

      ≥25

      318-350

      40-44

      ≤180

      EH

      N30EH

      1.08-1.15

      10.8-11.5

      ≥812

      ≥10.2

      ≥2388

      ≥30

      223-255

      28-32

      ≤180


      N33EH

      1.14-1.21

      11.4-12.1

      ≥851

      ≥10.7

      ≥2388

      ≥30

      247-279

      31-35

      ≤180


    • Appliacation for Motor :

    • Permanent magnet DC motor

    • AC motor

    • permanent magnet synchronous motor



    Delivery Date: 15-20 days Application: Industrial Magnet
    Shape: Others Type: Permanent
    Composite: Neodymium Magnet Brand Name: No
    Spec.: As requested Coating: NICUNI ,Zn,EPOXY
    Grade: N35SH Tolerance: +/- 0.05mm
    Magnetizing direction: Thickness Magnetization: Yes
    ROHS: Yes Avalable: Stock
    Certificate: ISO9001 ,ISO/TS16949,ISO14001,GS/T28001 Material: Neodymium Magnet
  • Min. Order: 1000 Piece/Pieces
  • Trade Term: FOB,CFR,CIF,EXW
  • Payment Terms: L/C, T/T, WU
  • Place of Origin: Zhejiang, China (Mainland)
  • Means of Transport: Ocean, Air, Land
  • Production Capacity: 10000000 PCS/M
  • Packing: Standard export carton
  • Delivery Date: 15-20 days
  • Application: Industrial Magnet
  • Shape: Others
  • Type: Permanent
  • Composite: Neodymium Magnet
  • Brand Name: No
  • Spec.: As requested
  • Coating: NICUNI ,Zn,EPOXY
  • Grade: N35SH
  • Tolerance: +/- 0.05mm
  • Magnetizing direction: Thickness
  • Magnetization: Yes
  • ROHS: Yes
  • Avalable: Stock
  • Certificate: ISO9001 ,ISO/TS16949,ISO14001,GS/T28001
  • Material: Neodymium Magnet
